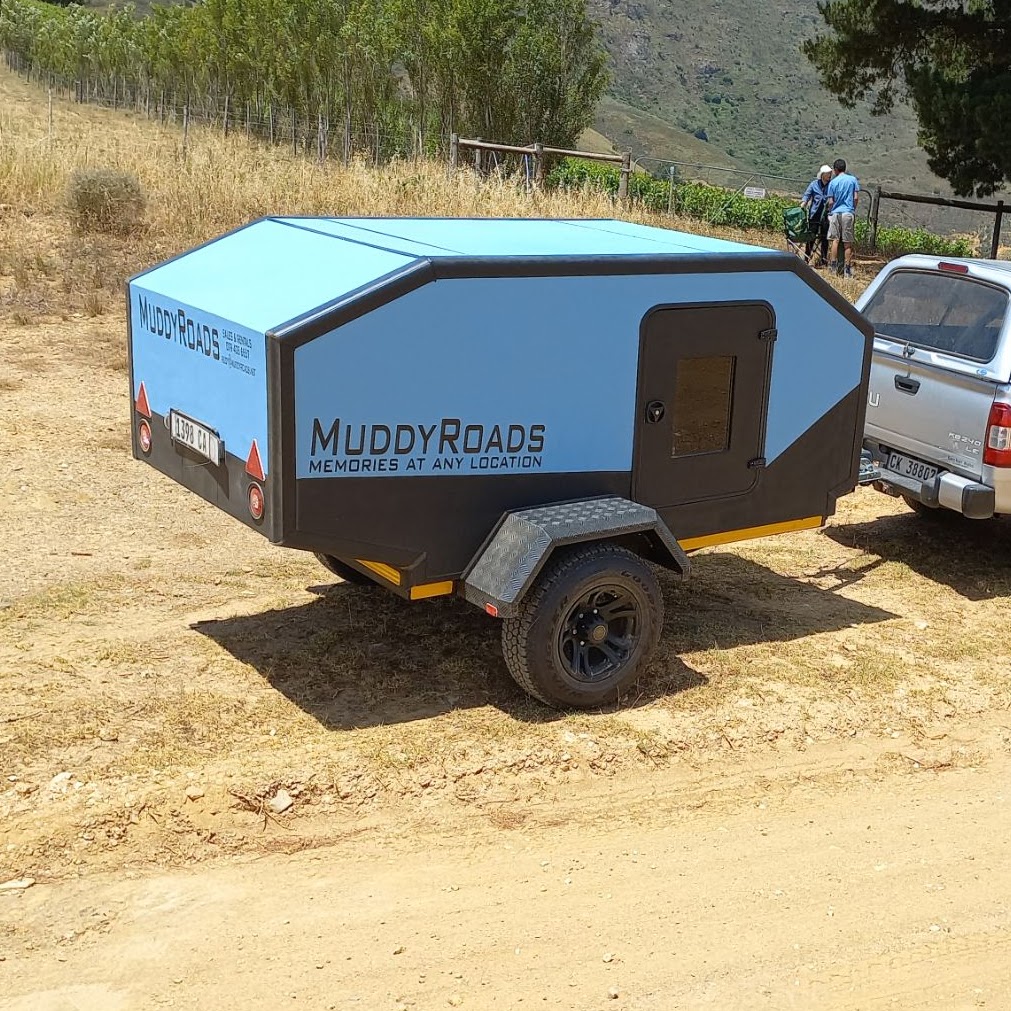

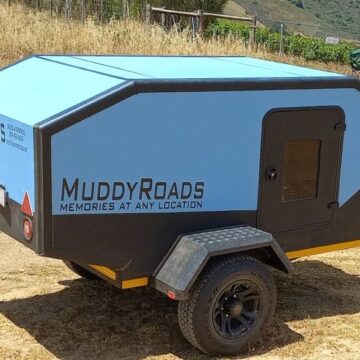

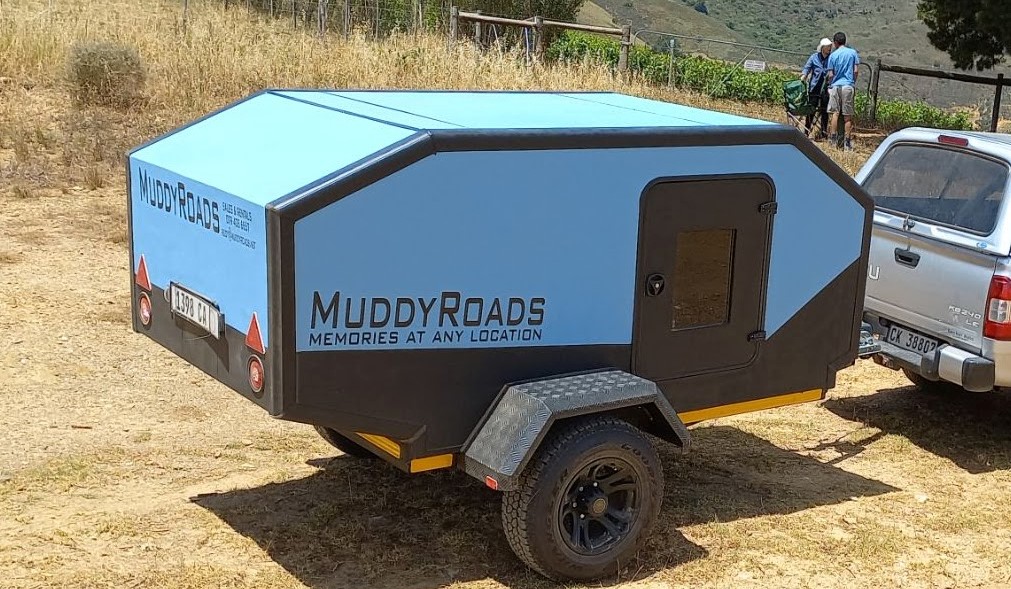

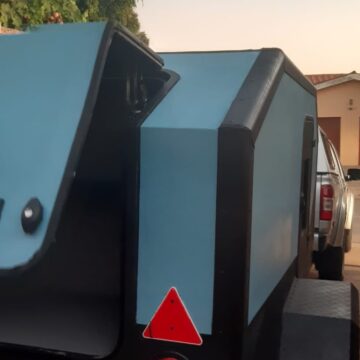

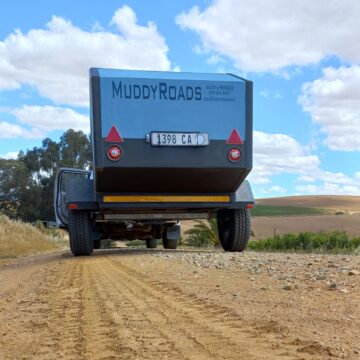

Muddy Roads Jazz off-road caravan
📷 8 Photos
Link copied to clipboard
MuddyRoads off-road caravans is a caravan for all campers looking for fun and adventure with memories that will last a life time. Their caravan is quick and easy to tow and with it’s vibrant colours and modern styling you’ll never have a boring weekend again.
Easy to tow with very little setup required and with a max. weight of 750kg, you don’t need a special license (EB) to tow.
Standard Equipment and Features:
Optional Extras:

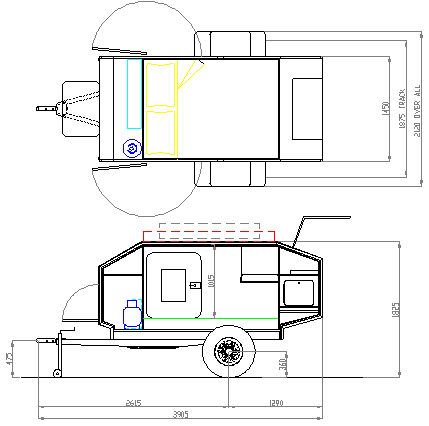

- Model: JAZZ
- Overall length: 3905mm
- Overall width: 2120mm
- Overall height: 1825mm*
- Track width: 1825mm
- Wheel size: 265/75 R15
- Cabin storage: 170l FWD
- Service area storage: 540l
- Ground clearance: 350mm*
- Tare weight: 380kg
- Gross weight: 750kg
- Water capacity: 55l
- Colours: Sky blue / Maroon / Dark olive green
Standard Equipment and Features:
- Chassis
- 3CR12 Chassis
- 265/75R15 GoodYear Wrangler tyres with 15″ A-line mags – 2 wheels fitted and spare wheel located under floor.
- 750kg Burquip Coupler
- Jockey Wheel
- 2off Leveling legs
- Burquip Axle – Rubride independent suspension with load rating of 1100kg – unbraked
- Matt black paint
- Double skin panels (chromadek) with light weight honeycomb core
- MuddyRoads logos and branding
- 2 off Entrance doors (950 x 750)

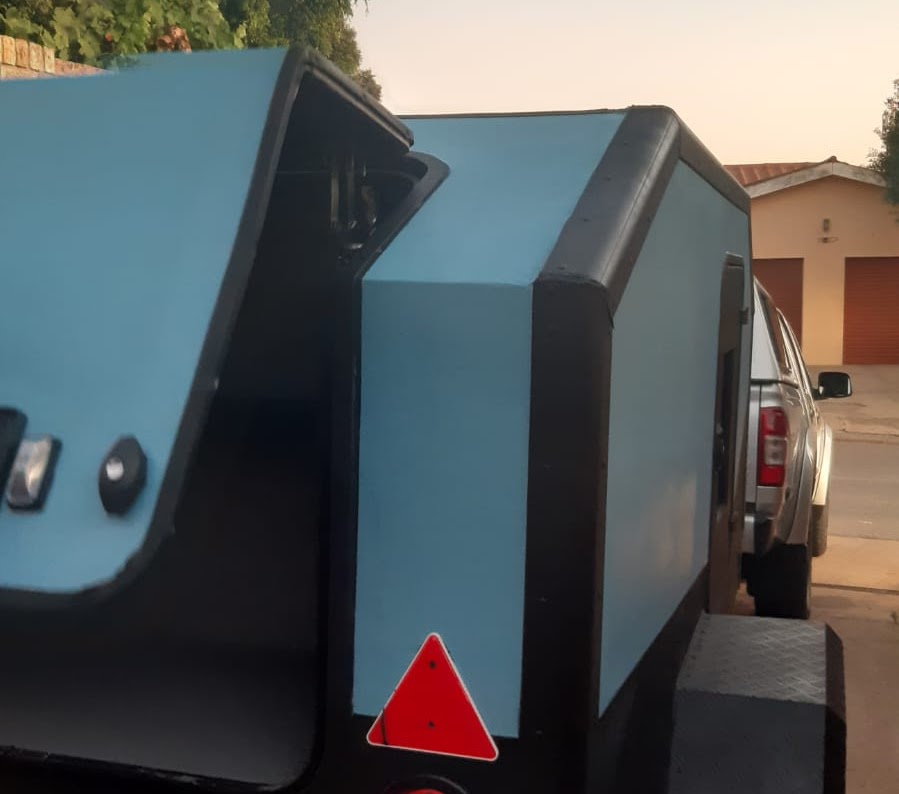

- 1 off Forward service hatch (750 x 500)
- 1 off Rear Kitchen hatch (750 x 350)
- 1 off Roof mounted ventilation hatch
- 1 off Kalahari Easy Shade 3m x 3m
- Interior

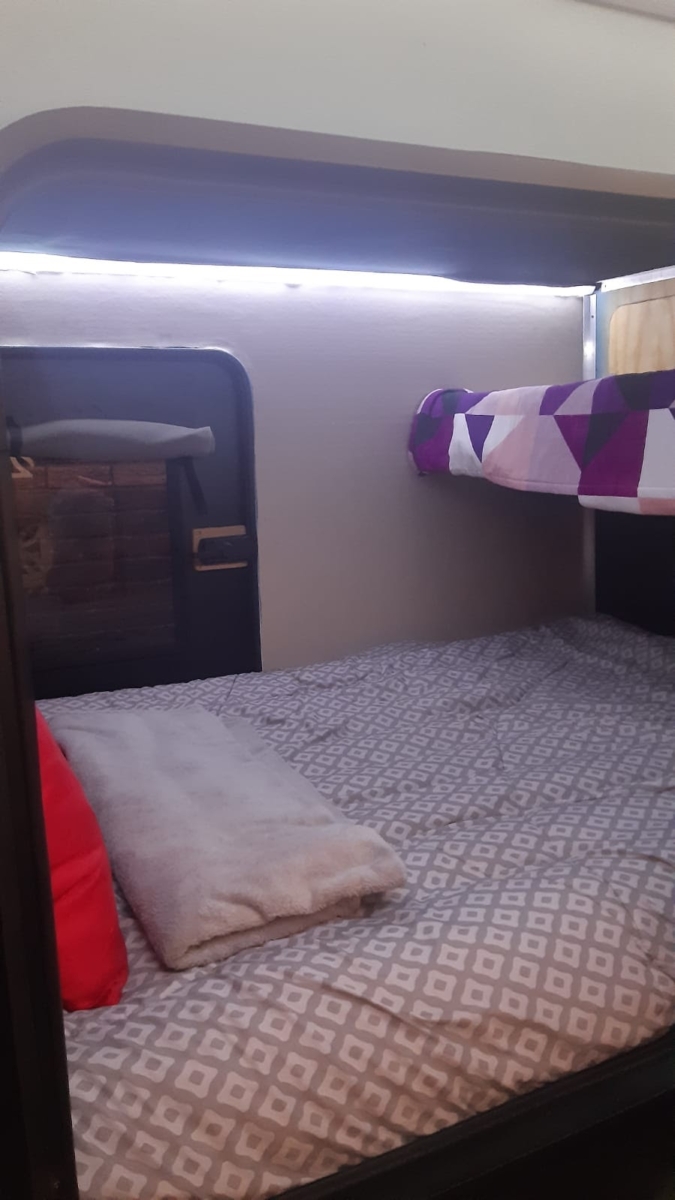

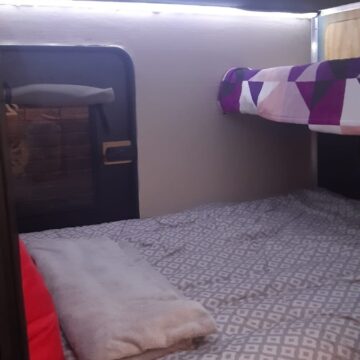

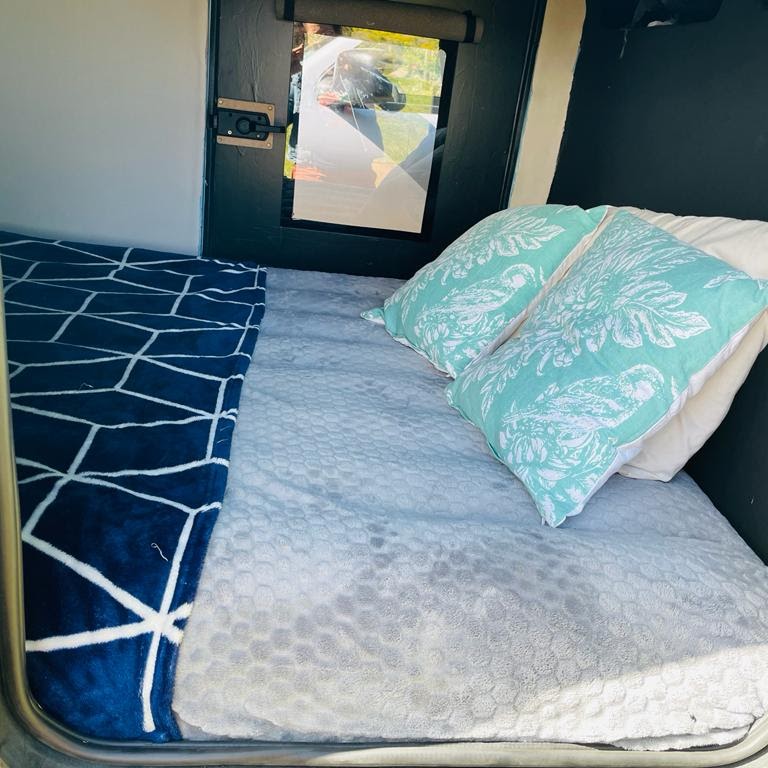

- Inflatable double mattress (1880 x 1370 x 200) – includes 12v electric pump
- Foam mattress (1370 x 500 x 75) for bunk bed (includes lee cloth for added safety)
- All internal walls cladded with automotive ceiling liner (black ceiling, beige or grey sides)
- Floor fitted with black automotive carpeting
- Internal joinery sealed with polyester resin
- 12v LED strip lights with light switch at each entrance
- 1 off Rechargeable LED light with magnetic feet for external use
- Storage spaces (170l front)
- Systems
- 55l Plastic water tank with filler cap and gravity fed tap
- 5kg CADAC Gas bottle and mounting bracket
- 12v / 7Ahr rechargeable battery
- Battery charger (220V AC)
- External 220V – 16A Female Plug located at rear of caravan
- 1 off Internal 220V double plug point
- 7 Pin electric coupler

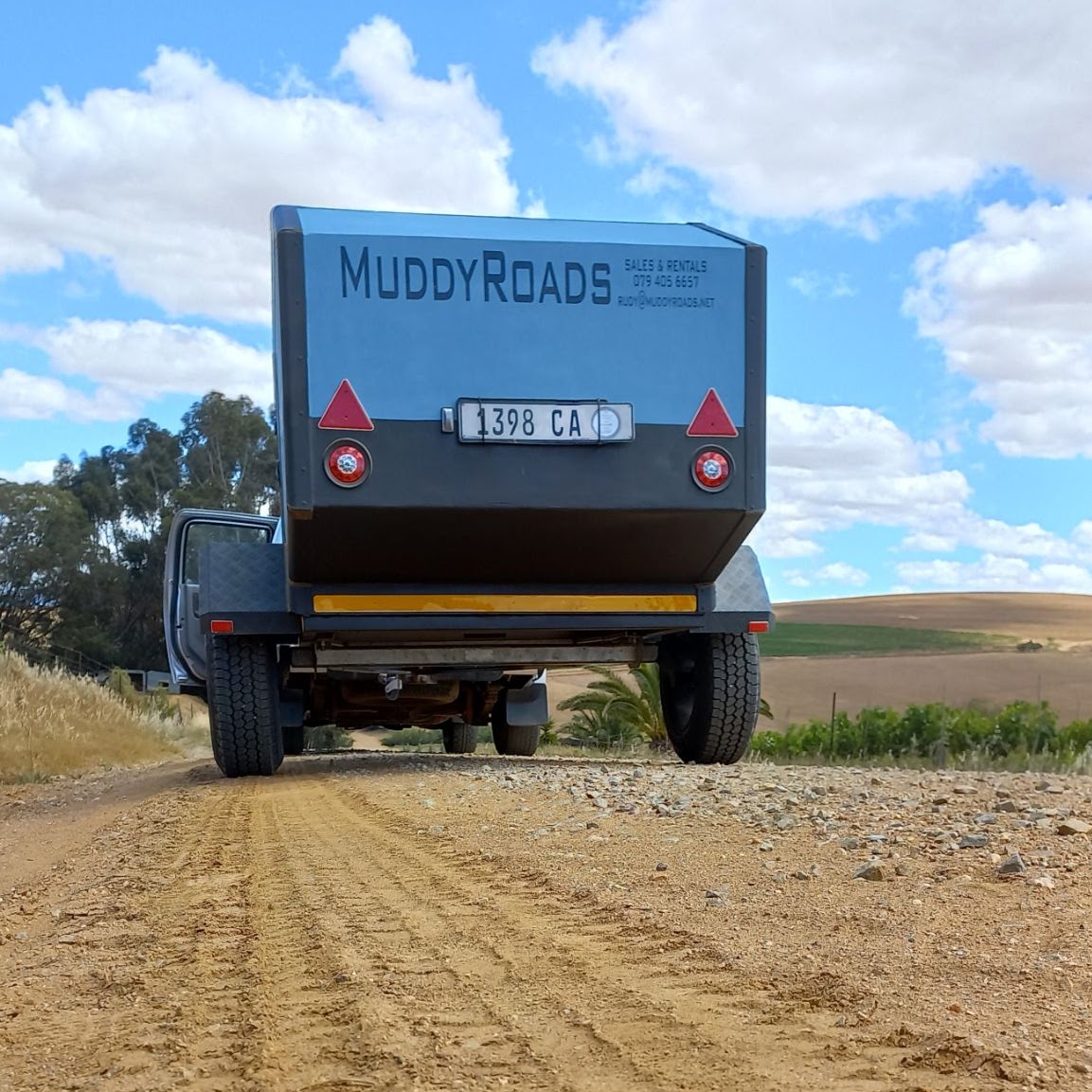

- LED Brake / Indicator light combo
- License plate holder with 2off LED lights
- Kitchen located in boot area. Unit includes CADAC 2 plate stove
- All SABS approved reflectors and reflective tape
- Miscellaneous
- VIN stamp and builders plate
- On road registration
- 1 year warrantee
- 1 off free service valid for 1year after handover
Optional Extras:
- Chassis
- Burquip 1100kg Braked Coupler
- Burquip Axle – Rubride independant suspension with load rating of 1100kg – braked
- Body
- External panels painted with Gladiator Coating (RAL Colour chart)
- Additional sliding windows
- 1 off Roof mounted ventilation hatch with 12v electric ventilation fan
- Interior
- Foam double mattress (1880 x 1370 x 100)
- Additional bunk with mattress (1370 x 500 x 75) – includes lee cloth
- Systems
- Plumbing
- 55l Stainless steel water tank with filler cap
- Pressurized water system
- Outside shower
- Additional tap point located in kitchen unit
- Electric System
- 12v dry cell battery 100Ahr
- Solar panel with monitoring system*
- Miscellaneous
- Roof rack
- Rooftop tent
- Awning
- Quick Pitch Shower
