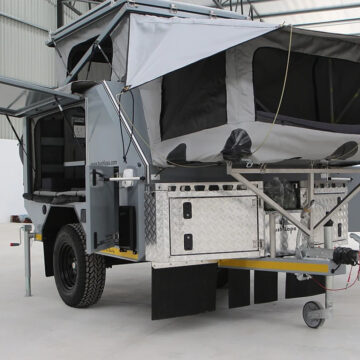

Bush Lapa Kewer Trailer
“One of the most surprising things is that it tows so comfortably behind our 2.4 l HiLux. I can sometimes feel that the HiLux is puling something, but in terms of road behaviour there is no difference. When I step on the spoon, the cart comes easily. The Bush Lapa follows the HiLux very carefully, wherever I go or direction I choose.”
Basic Specs
Berths: 2 adults and 1 child
Tare: 880kg
GVM: 1500kg
Licence required: EB

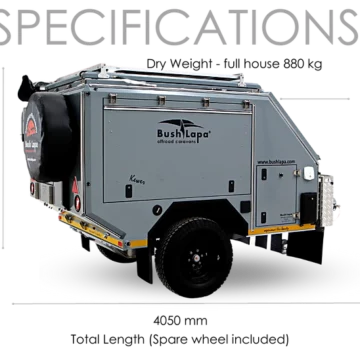

Main Specs
Dry Weight – as per standard included features880 kg
Total Length (Spare wheel incl)4050 mm
Total Height to roof top 1970 mm
Total Height to top of Bush Wing (depending on tyre size)±2050 mm
Total Width 1850 mm
Ground Clearance (Axle)350 mm
Departure angle44°
Solid beam axle with leaf springs and shock absorbers2500 kg
GVM1500 kg
Loading Capacity670 kg

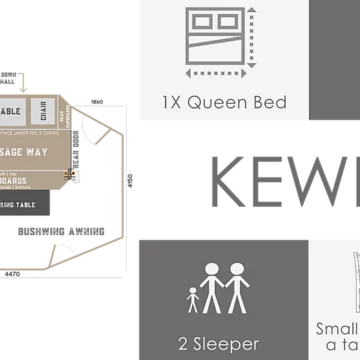

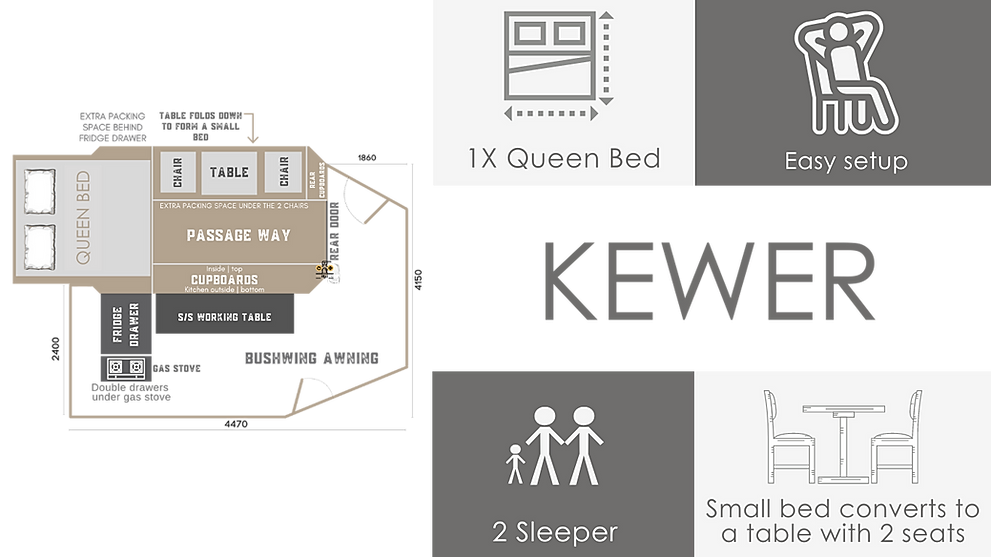

Queen bed – Front bed1
Small single bed (converts into table with two seats) – Inside Bed1
Sleeps2 Adults + 1 Infant
3CR12 Stainless Steel Body and Chassis
Aluminium interior and doors
Micro Dotted (also known as Data Dot) as per law specs.
3 Year Guarantee (ex factory) on material and workmanship, other items as per manufacturer’s guarantees

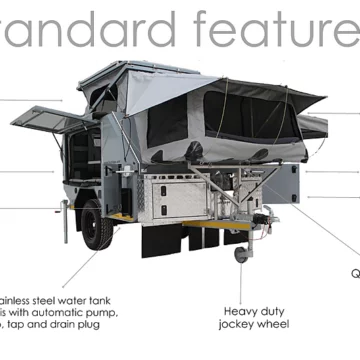

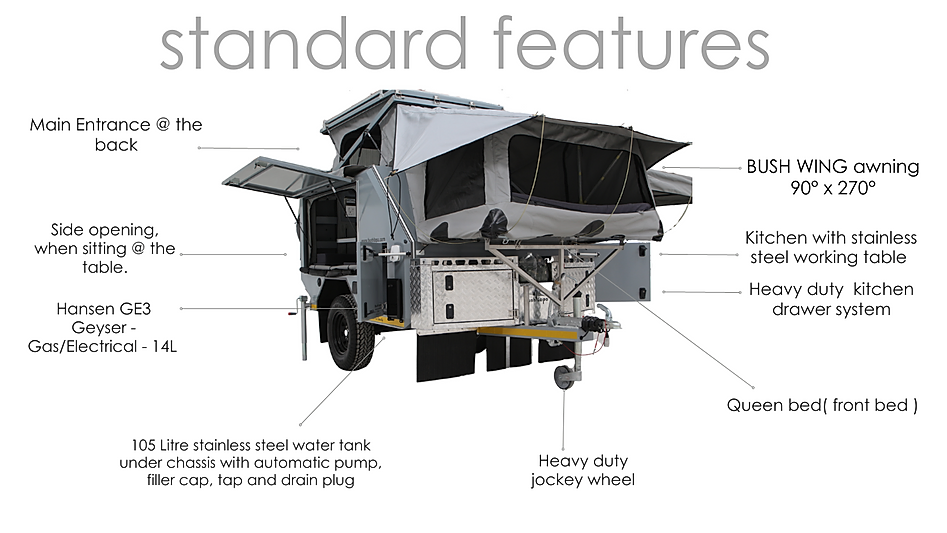

Standard Features

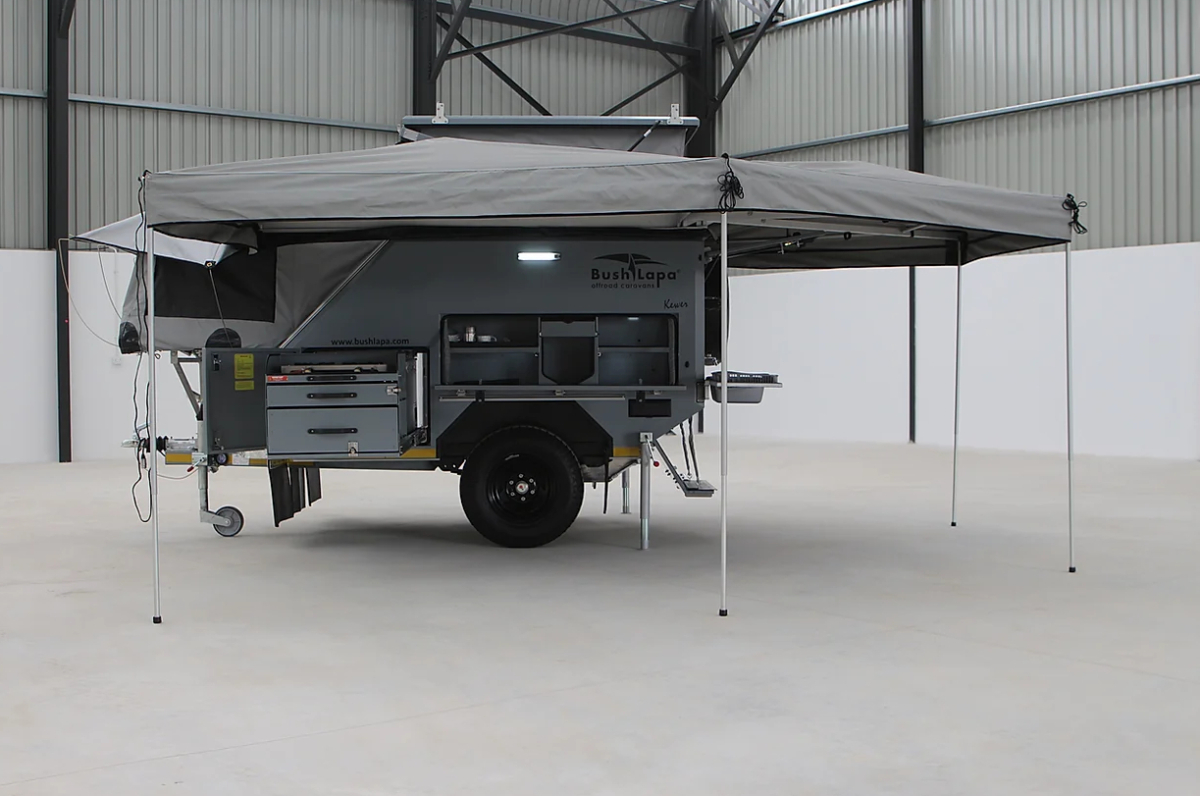

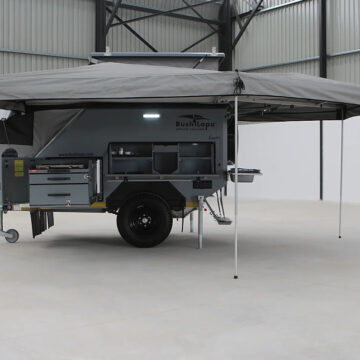

Bush Wing Awning 90° x 270° 1x
Sides for Bush Wing (2x doors) incl draft skirt 5x

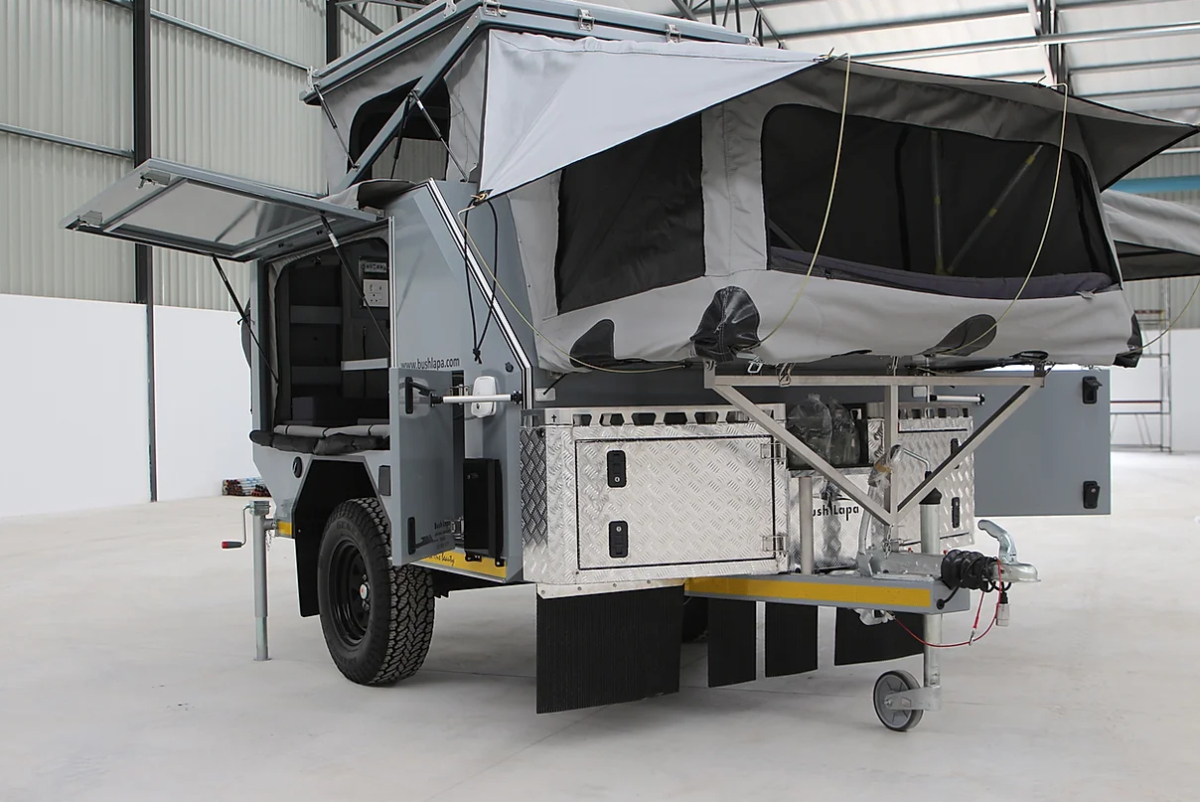

Front bed with reflective flysheet 1x
Mosquito net at door 1x
Mattresses with memory foam top layer 1x D
Internal storage compartments with canvas & zips 17x
Inside floor carpet 1x

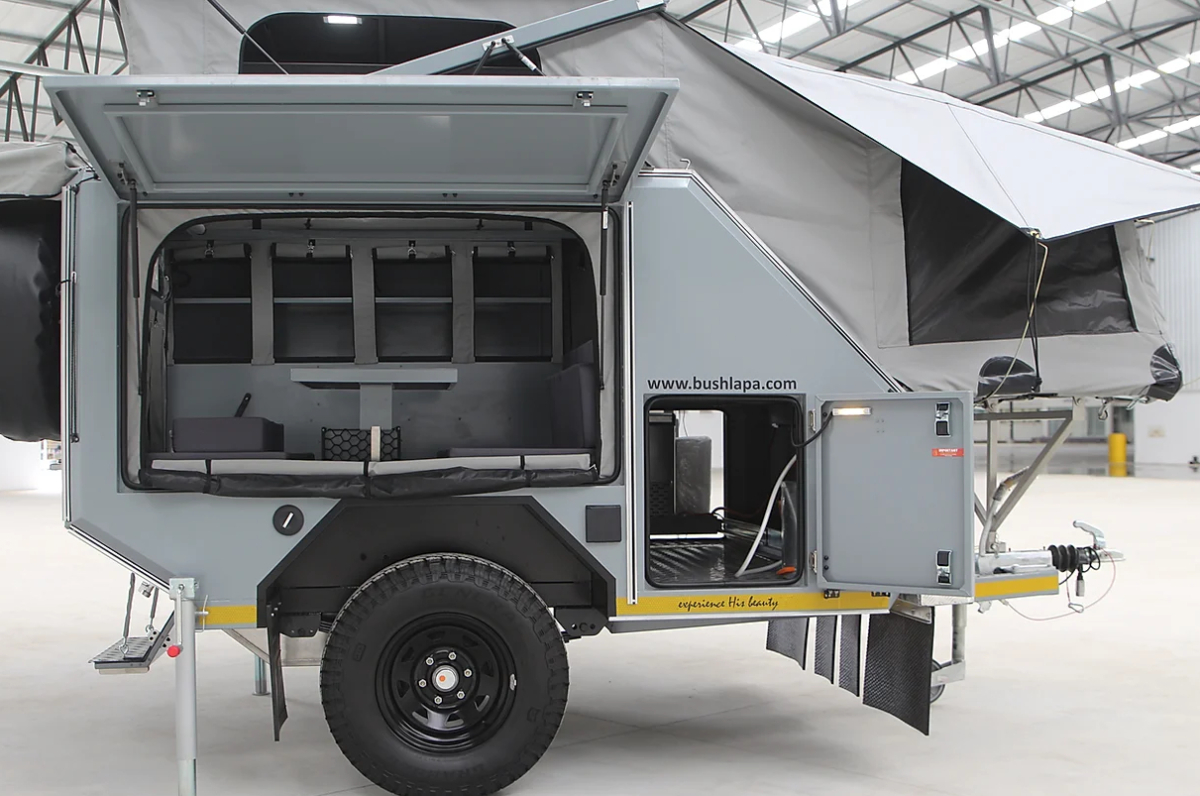

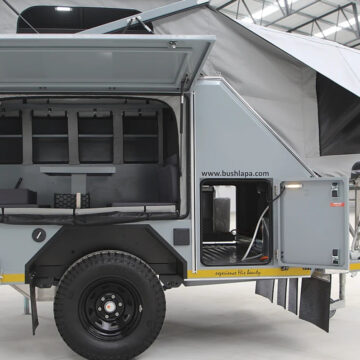

Kitchen with stainless steel working table 1x
Crockery set in foam holder in kitchen (for six) 1x
Heavy duty aluminium kitchen drawer system 1x
2 Plate gas cast iron burner fixed in stainless steel stand 1x
Aluminium storage box next to fridge (to fit fridge specifications) 1x
15″ Wheels, 6 stud, steel epoxy rims 3x
Wheel spanner, lockable spare wheel 1x
Spare wheel cover 1x
Stabilizers/Jacks/High lift jacks 2x
Heavy duty jockey wheel 1x
Jockey wheel out of the way bracket 1x
Solar Panel 140W – 160W with MPPT 75/15A and aluminium roof rack 1x
Deep cycle batteries with cover boxes 2x
Victron Intelligent Charging system, monitor and Bush Lapa power panel 1x
Anderson plug on A-frame for charging system from vehicle (Subject to vehicle) 1x
Roof LED light 1x
DUAL Touch LED lights (1x kitchen) 1x
LED Lights (3x kitchen, 2x bed (1x each), 1x entrance door, 1x geyser door) 6x
Hella points 12V output (1x inside on DB board, 1x front RH corner, 1x rear LH corner, 1x outside kitchen) 4x
USB plugs (2x 12V on DB board, 1x 220V on DB board) 3x
Anderson Fridge points 12V 50A 1x
220V Inlet caravan plug 1x
220V 3 point plug (3x outside kitchen, 1x inside on DB board) 4x
220V 2 point plug (1x inside on DB board) 1x
220V Caravan extension lead for mains 10 m 1x
Aluminium checkered nosebox with wood racks on top 1x
Gas bottle bracket in nosebox 2x
Jerry can holder in nosebox 1x
Jerry cans 2x
Mudflaps for nwheel arch 2x
Mudflap stone protectors for chassis 1x
Fire extinguisher 1x
Wash basin with dry rack on rear in aluminium frame (removable) 1x
Hot and cold water taps on rear for wash basin 1x each
105 Litre stainless steel water tank under chassis with automatic pump, filler cap, tap and drain plug 1x
Water meter 1x
Hansen GE3 Geyser – Gas/Electrical – 14L 1x
Transport included to Bush Lapa dealers (7 working days extra from factory completion date) 1x
Optional Extra’s
100W External solar panel with regulator, 10m lead & PVC bag
National Luna 90L incl baskets (220V/12V)
SnoMaster 81.5L incl baskets (220V/12V)
Fitted Windshield
Other axle than standard
Mag Wheels 15″, 16”, 17” or 18”
Shower Wing
Gas bottles (empty)
Foldable camping table (1800x740x740) with PVC bag & table strap
Table strap only
Lower travel blanket
Top travel blanket
PLEASE SELECT YOUR COLOUR & CANVAS COMBINATION
Bush Lapa Khaki caravan with Bush Lapa Khaki canvas
Bush Lapa Grey caravan with Bush Lapa Grey canvas
We also have the option between White/Green Bush Lapa Caravan
