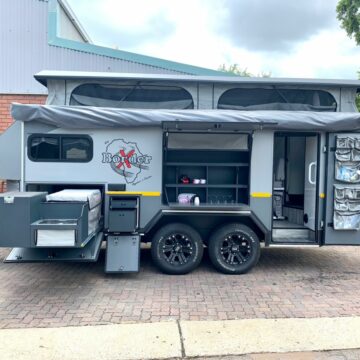

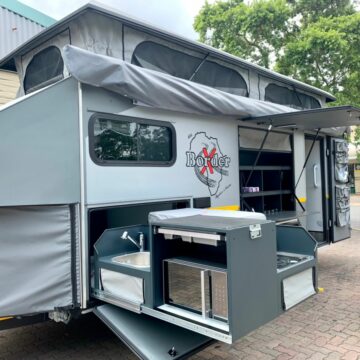

BroderX Expedition

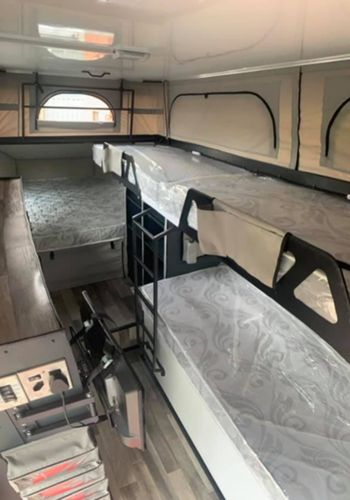

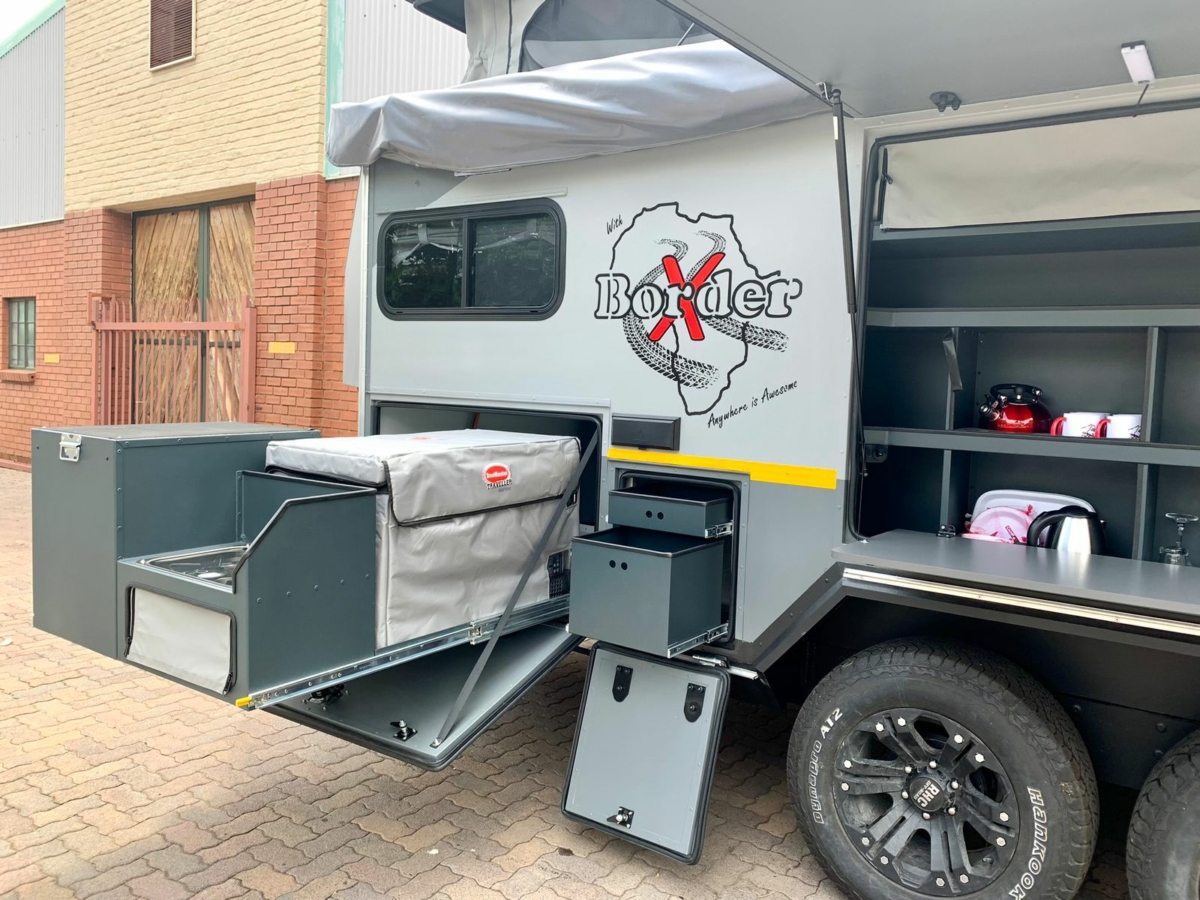

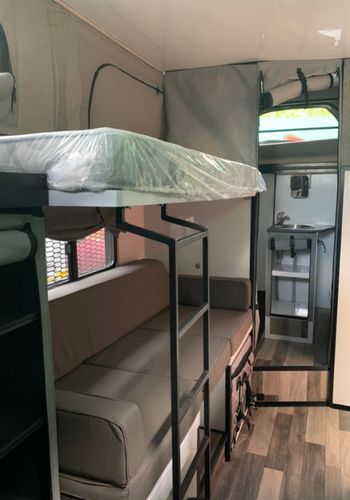

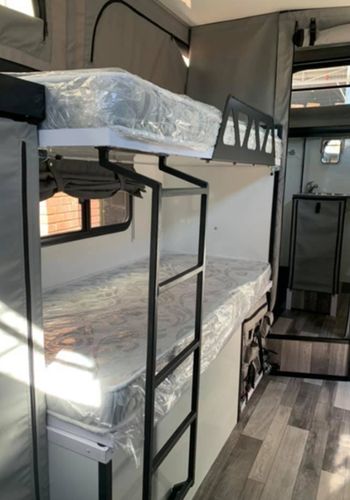

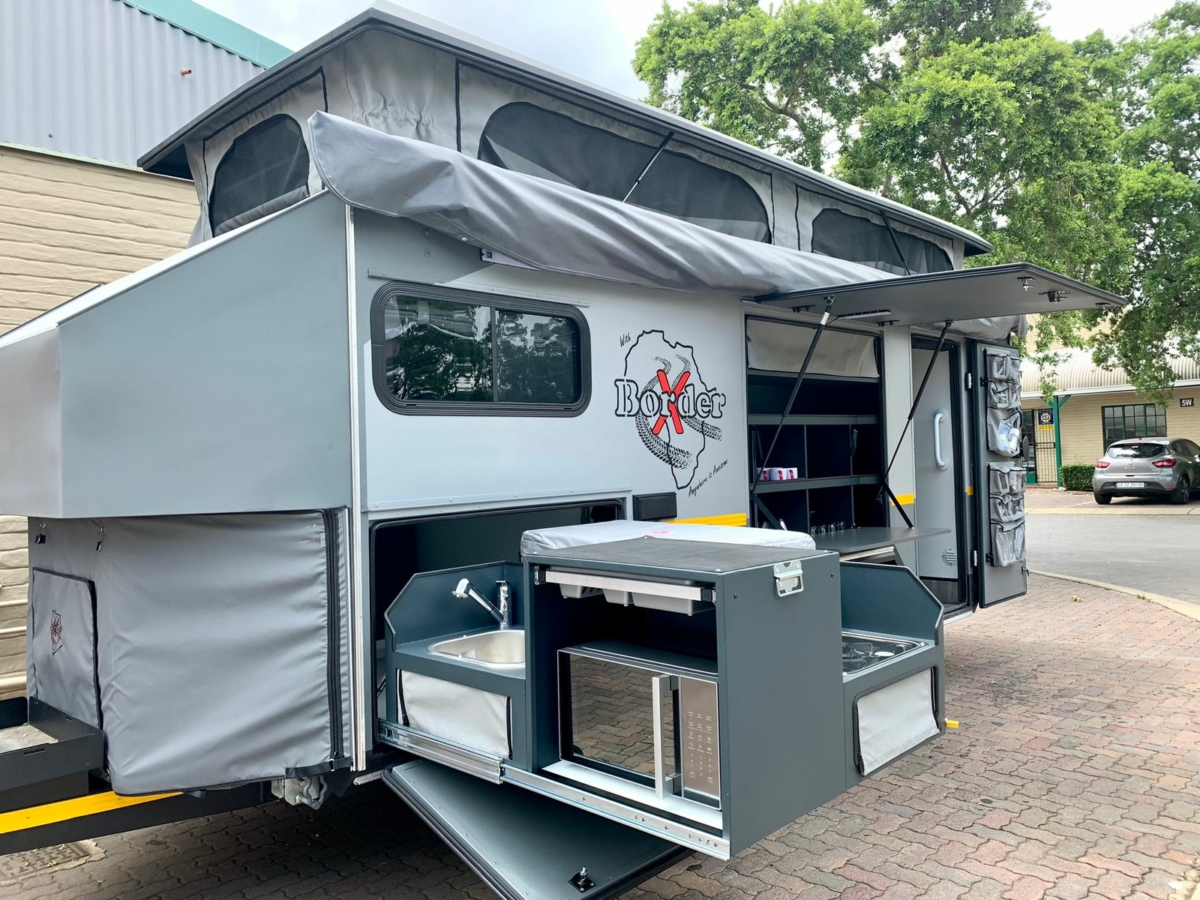

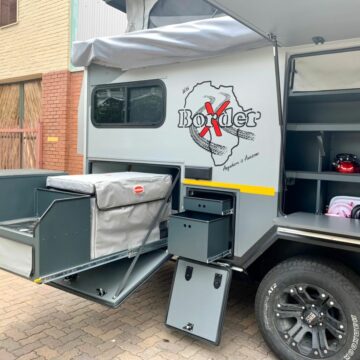

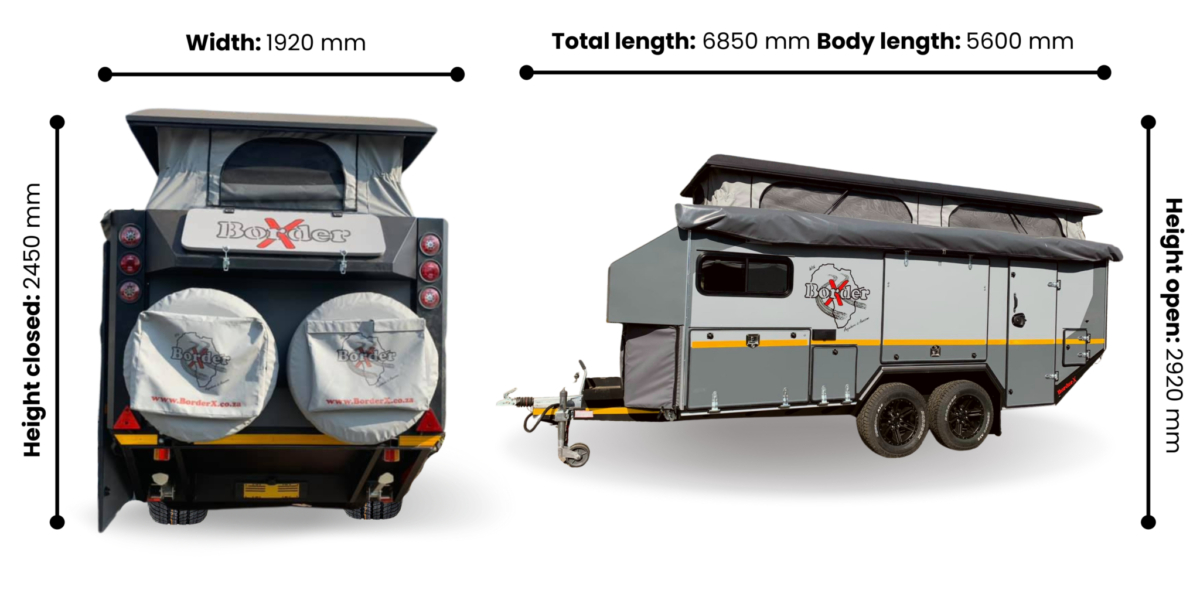

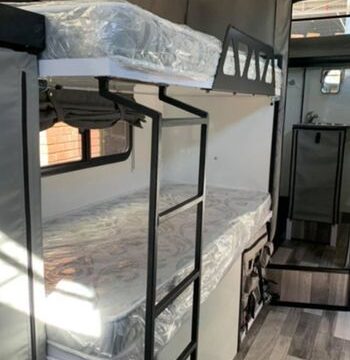

Basic Specs Berths: 2-6 Tare: 1650kg GVM: 2000kg/2200kg Licence required: EB SPECIFICATIONS Total length: 6850 mm Body length: 5600 mm Width: 1920 mm Height closed: 2450 mm Height open: 2920 mm Net weight: 1650 kg Payload: 350 kg / 500 kg GVM: 2000 kg / 2200 kg Body construction: Composite honeycomb panels with aluminum structure, painted with Raptor coating. Finishing: Powder coated Aluminium Axle type: 2 x 2 000kg rated independent suspension Suspension type: 4 coils and 8 shocks Chassis: 3CR12 Stainless steel Wheel size: 17-inch 265/65 all-terrain tyres (upgrade available to client spec) STANDARD EQUIPMENT Gas geyser with hot & cold connection to all taps Slide-out kitchen: 2 plate gas hop + Extra-large washup basin with a shower head that can be extended + Place for large fridge/freezer + place for microwave & extra storage. Large outside kitchen [1 700mm x 1 480mm x 350mm] + Fold down table + 2 x 220V socket, 2 x 12V USB connection, 1 x 12V Merit Socket or 1 x 12V Cigarette socket + Top shelve can be made to be accessible from inside. Additional food storage draw [400mm x 400mm x 400mm] 2 x 75 liter water tanks, with pressure pump. 4 caravan stabilizers Spare tyre mounted on braked drum Nose storage box [1 100mm x 400mm x 800mm] Dirty box at back Additional storage compartment accessible on right-hand side [600 mm x 1000 mm x 600 mm] External Lighting: 3 x dimmable LED lights (white / yellow) Inside Electricals: 220V to 12V Victron charging system with Bluetooth connectivity + 6 Way fuse box + 220V Circuit breaker box + 12V monitor system with Bluetooth connectivity + 2 x double 220V socket, 3 x 12V USB connection, 1 x 12V Cigarette socket + 3 x LED lights + Space for 2 x 105Ah batteries Berths (depending on layout): Main bed [2000 mm x 1860 mm], with high quality 120 mm mattress + single beds: x1 OR x2 OR x3 OR x4 Depending on the layout option: Couch OR Dinette, Space second fridge [low profile 60 litre], Shelving designed to take black ammo crates if required + can upgrade to drawer system 1 x 1kg fire extinguisher Bathroom/wet room: large shower with separate basin and toiler/porta potty area. Standard with 3 Window [900mm x 450mm] OPTIONAL EQUIPMENT Bundutec 360 awning installed with 7 tent poles. Full tent or separate side walls available: solid, windows and doors & draft skirt Nose protector cover Blinds Luxury cassette toilet or Porta potty Fridges/Freezers Solar panel with Victron MPPT Bluetooth enabled charger. Deep cycle / Lithium batteries Ewiks double Axle movers 9 000BTU split aircon Victron inverter Upgrade to other spec tires and rims Upgrade to inside drawer system Fitting out of kitchen with foam cut-outs Safe/strong box Camping table Electrical lead Step 2 tier And lots more Click below to see spec, additional interior and exterior images: [foogallery id=”205442″]
