Afrispoor Caracal 2 Sleeper Conversion

The Afrispoor Caracal 2 Sleeper Conversion is a rugged off-road caravan designed for couples who want a comfortable and practical touring setup. It features the same fixed queen bed and large fully equipped kitchen as the standard Caracal, while replacing the second exterior door with an indoor lounge area featuring two dedicated seats and a removable table.

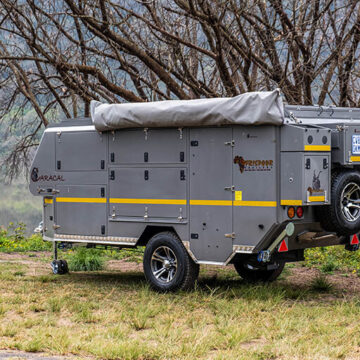

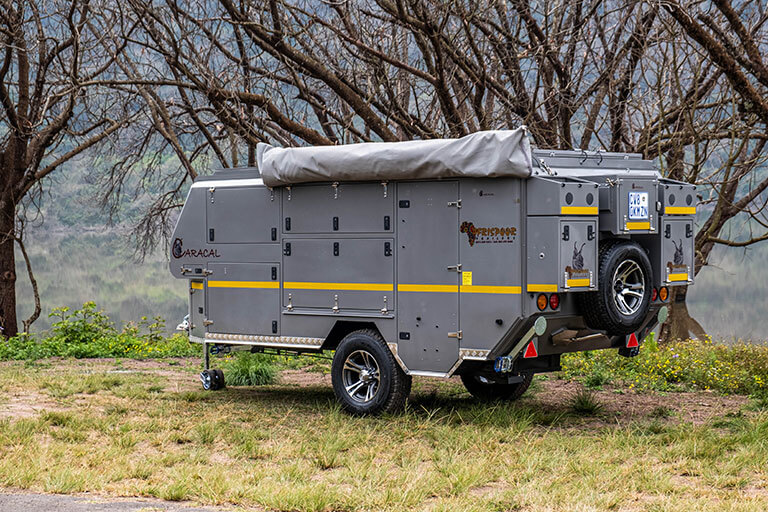

Built for demanding off-road adventures, the Caracal features a durable 3CR12 stainless steel load body, aluminium roof and storage components, and a hot-dipped galvanised chassis. With a spacious queen bed, fully equipped kitchen, internal shower, generous storage and comprehensive electrical system, it provides a comfortable base for extended off-grid travel.

Specifications

• Sleeps: 2
• Road Type: Off-Road
• Tow Hitch to Rear: 5360mm
• Body Length: 4350mm
• Overall Width: 1850mm
• Overall Height: 2260mm

Structural Features

• Aerodynamically shaped body for easy towing
• 3CR12 stainless steel load body
• Aluminium roof, rear storage boxes, front lid and doors
• Hot-dipped galvanised chassis with steel channel
• High-quality automotive 2K painted and baked finish
• Rubberised stone-chip coated front lid
• Door entrances on both sides for easy access

Suspension

• 2500kg braked heavy-duty solid axle
• 2700kg tow hitch with jockey wheel storage holder
• 36″ 10-blade springs
• Heavy-duty shock absorbers
• Auto-reverse front coupler with handbrake
• 2 x quick-release stabiliser legs at rear
• 2 x quick-release stabiliser legs at front
• Heavy-duty 60mm double jockey wheel
• 3 x 15″ alloy rims
• 245/75 or 245/70 R15 Goodyear all-terrain tyres
• Spare wheel with spare wheel carrier

Electrical

• 105Ah deep-cycle battery mounted in battery box
• 12V fuse box
• 220V to 12V 15A battery charger
• 220V caravan plug inlet
• Electrical board with circuit breakers and plug points
• 50/175A Anderson plug and cables for vehicle charging
• 3 x 12V Hella plugs
• 2 x reading lights at the head of the main bed
• 7 x LED interior and exterior lights with two-setting white lights
• 3 x Multiplugs
• 1 x Double USB port

Water Storage

• 105L water tank
• Protective deflector plate around water tank
• 12V pressure water pump
• Lockable water filler with easy access

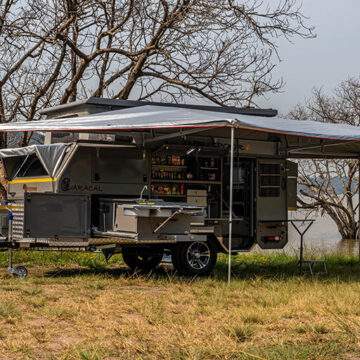

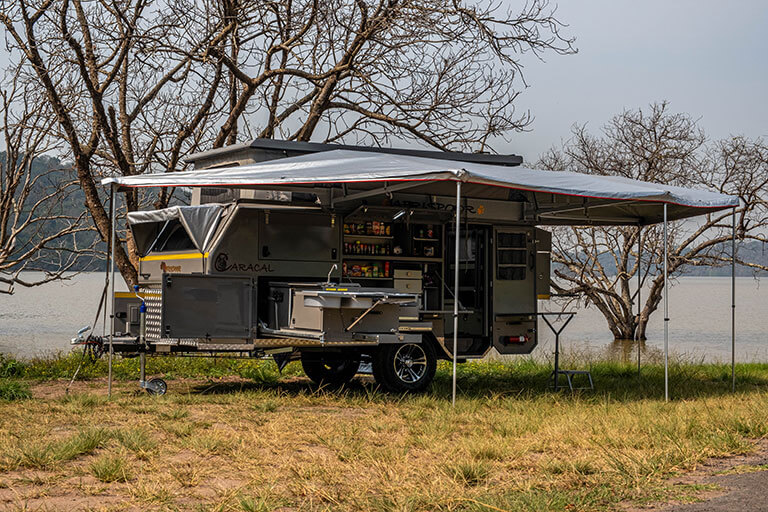

Awning Options

• Afri-Awn 270° swing arm awning – 2.75m
• Standard roll-out awning – 2.75m

Canvas

• Heavy-duty ripstop canvas on 3 large main bed windows
• Heavy-duty ripstop canvas on pop-up roof with 6 windows
• Mosquito netting fitted to all windows including pop-up roof
• Heavy-duty ripstop canvas draft skirt for shower area
• Additional ripstop reflective flysheet over main window

Locking Mechanism

• High-quality automotive door rubber for dust and water resistance
• Heavy-duty lockable pressure locks on all doors and external compartments
• 2 x high-quality compression latch locks on front lid

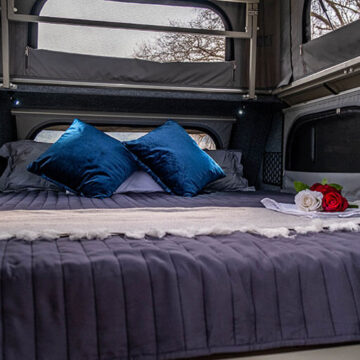

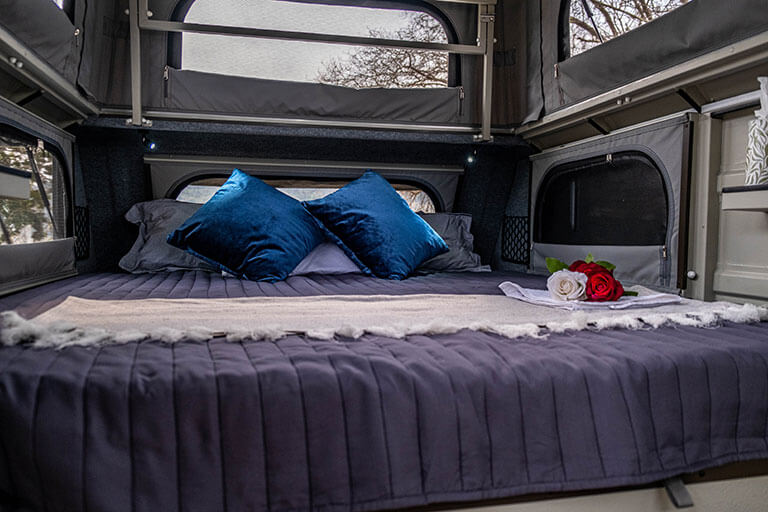

Main Bed

• Fully set-up main bed
• Pop-up aluminium roof with 4 gas struts
• 150mm thick mattress
• 100mm high-quality foam and 50mm eggbox foam for additional comfort
• Extended queen bed measuring 2120mm x 1640mm
• Easy access with additional headroom

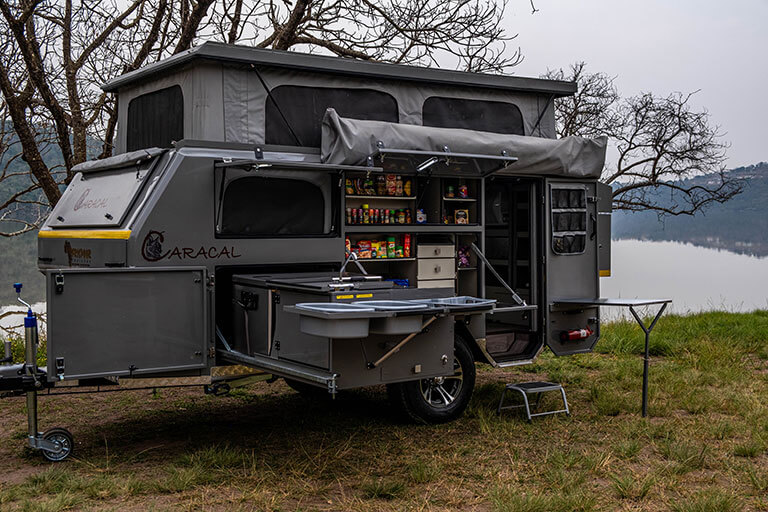

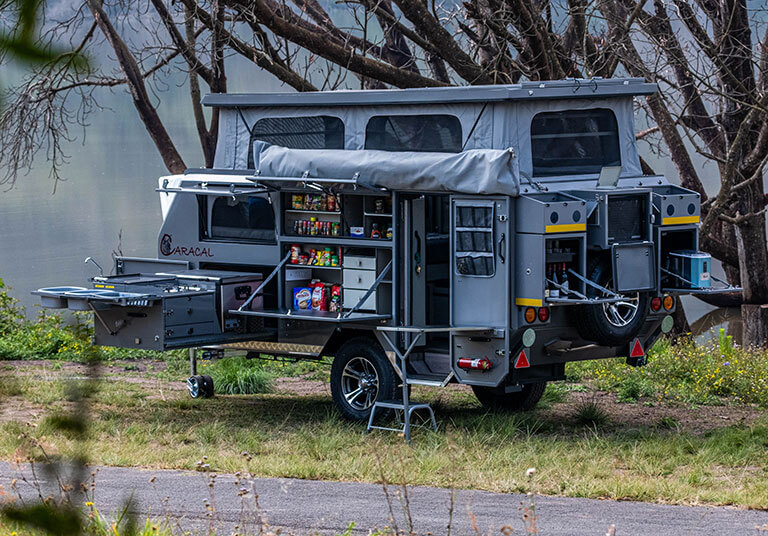

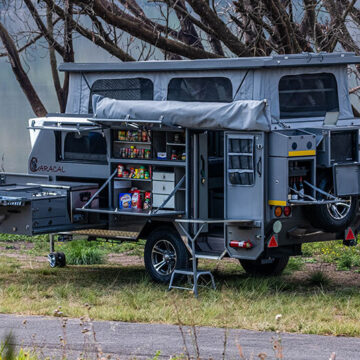

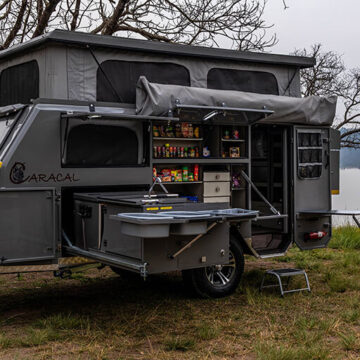

Kitchen

• Heavy-duty roller-slider mounted kitchen
• NATIONAL LUNA 90L stainless steel fridge/freezer
• Self-igniting stainless steel stove
• Foldable wash stand with double basin and drip tray
• Imported quality foldable hot and cold water tap
• Spice and sauce compartment for easy access while cooking
• 2 x large divided food storage compartments
• 3 x roller drawers for food storage
• 1 x storage compartment accessible from inside the cabin
• Drop-down table in main door with canvas pouch and 1kg fire extinguisher
• 3 x roller drawers for crockery and cutlery
• Foam rubber protection for glass crockery
• 4 x glass mugs
• 4 x beer glasses
• 4 x wine glasses
• 4 x melamine bowls
• 4 x melamine plates
• Chopping board and cutlery holder
• Knife, fork, tablespoon and teaspoon set – 4 of each
• Knife set including paring knife, chef knife and bread knife
• Cooking set including peeler, spatula, 2 salad spoons, whisk and tongs
• Mini bar with foam rubber moulds
• 2 x tumbler glasses
• 2 x zombie glasses
• Mini bar can be positioned at the rear

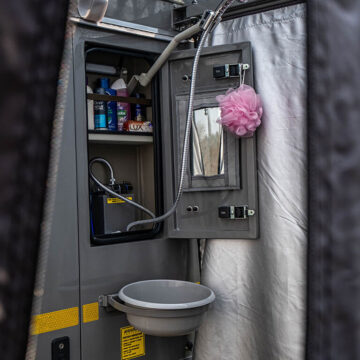

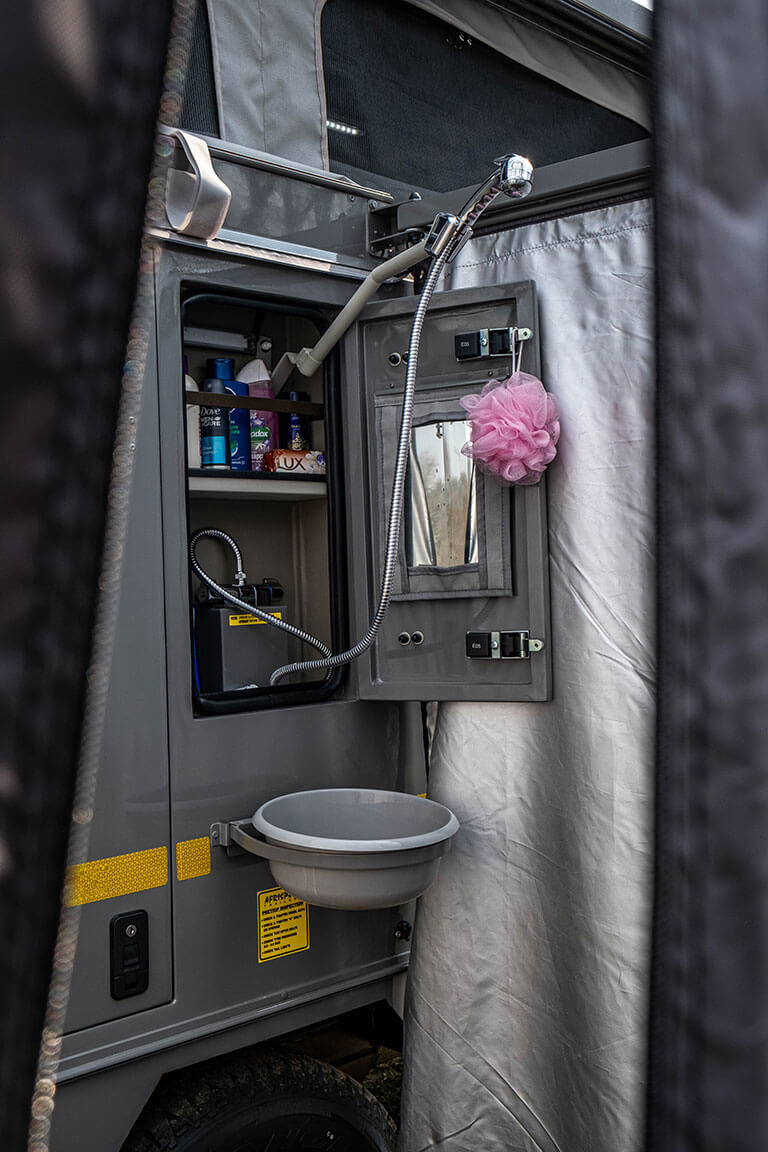

Shower Area

• Hot-water gas geyser system
• Imported shower rose with hot and cold mixer
• Quick and easy unfoldable shower cube with integrated curtain
• Hands-free shower rose bracket
• Additional small detachable round basin
• Small drop-down table with canvas pouch in shower door
• Additional small pouch in shower compartment door
• Removable mirror in canvas holder

Indoor Lounge

• Indoor lounge replacing the second exterior door
• 2 dedicated seats
• Removable table

Extras Included

• Removable spade mounted at rear under storage boxes
• 3 x spring steel spring rods
• Aluminium poles for awning
• Tent peg bag
• Rubber mallet
• Wheel spanner
• 12 x tent pegs
• Guy ropes

Optional Extras

• 2 x 160W semi-flex solar panels
• 150L upgraded water tank
• 9000BTU wall-mounted air conditioner
• Awning side walls
• Awning square-off extension
• 20L Porta Potti
• Ice machine

Please contact us for prices with your quote and any other additions.
