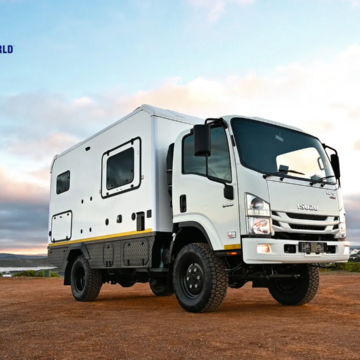

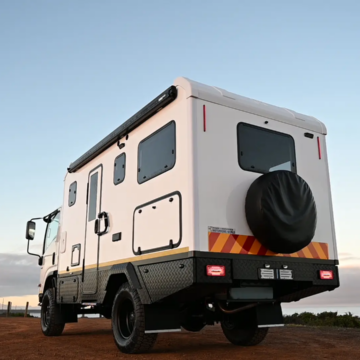

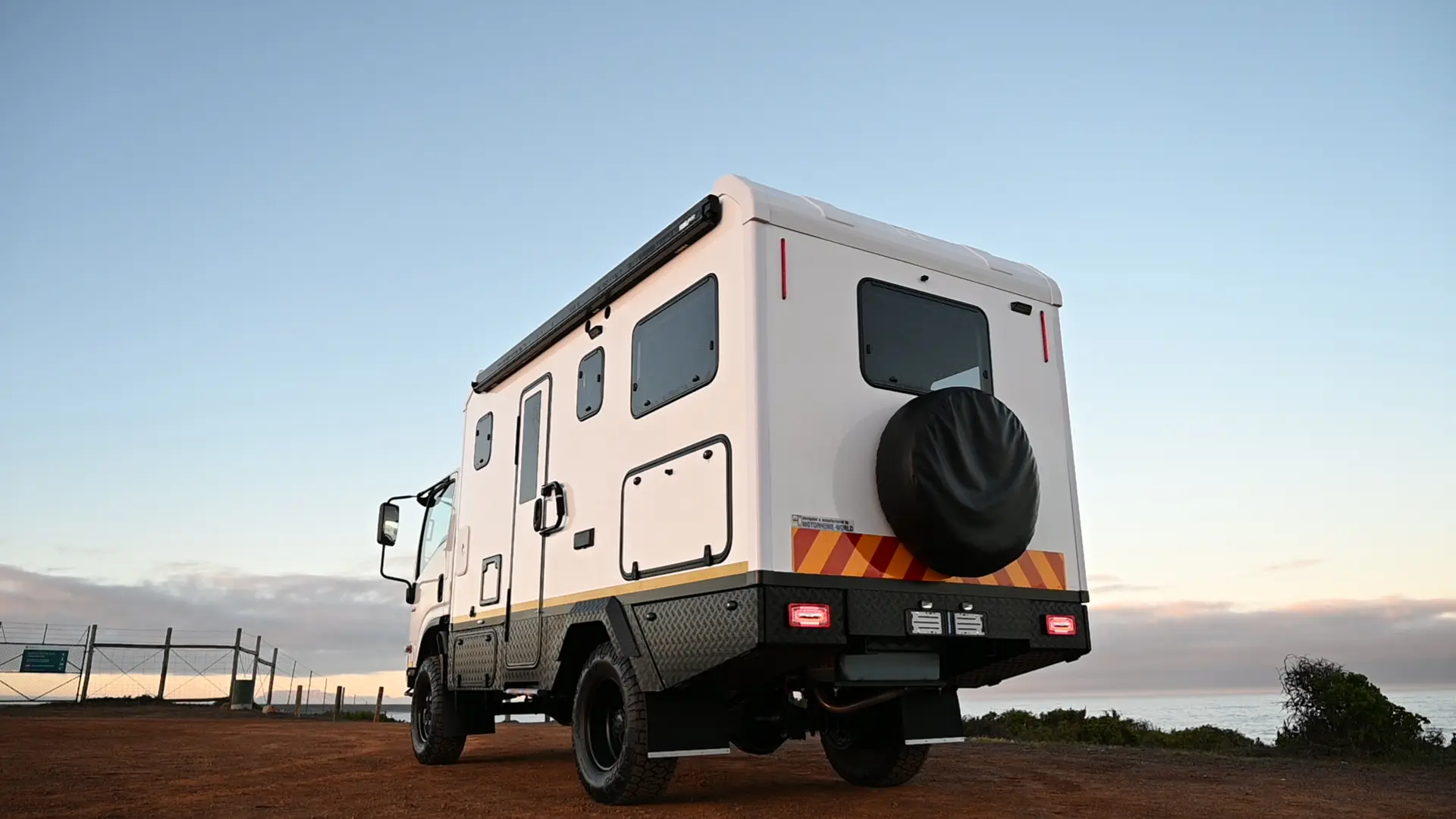

Discoverer Xtreme 4×4 – Isuzu Motorhome

The Discoverer Xtreme 4×4 – Isuzu is a purpose-built off-road motorhome engineered for travellers who want to explore beyond conventional routes. Built on the proven Isuzu 4×4 platform, it delivers outstanding durability, dependable performance and exceptional capability for remote overland adventures.

Designed to tackle demanding terrain with confidence, the Discoverer Xtreme features selectable four-wheel drive, a heavy-duty chassis and an impressive payload capacity for carrying everything required on extended expeditions. Its practical design allows you to venture further while enjoying the reliability expected from an Isuzu platform.

Whether you’re travelling across gravel roads, mountain passes or remote wilderness destinations, the Discoverer Xtreme 4×4 – Isuzu provides the strength, capability and confidence to take on every journey.

Highlights

• Purpose-built Isuzu 4×4 off-road motorhome
• Selectable four-wheel drive system
• Powerful 5.2L turbo diesel engine
• Heavy-duty 5-speed manual transmission
• High and low-range transfer case
• Approx. 3,140kg payload capacity
• 100L fuel tank
• Heavy-duty leaf spring suspension
• Designed for remote overland expeditions
• Custom-built to your travel requirements

Specifications

Engine: Isuzu 4HK1-TCN

Configuration: 4-Cylinder Turbo Diesel, Intercooled

Displacement: 5,193 cc

Power: 110 kW @ 2,600 rpm

Torque: 404 Nm @ 1,500–2,600 rpm

Emissions: Euro II (SA Specification)

Drivetrain: Selectable 4×4

Transfer Case: High 1.00:1 / Low 1.84:1

Front Hubs: Manual Locking

Transmission: Isuzu MYY5T 5-Speed Manual

PTO Provision: Gearbox Mounted

Gross Vehicle Mass (GVM): 6,200 kg

Gross Combination Mass (GCM): 9,500 kg

Kerb Mass: Approx. 3,060 kg

Payload: Approx. 3,140 kg

Front Axle Rating: 2,800 kg

Rear Axle Rating: 6,600 kg

Wheelbase: 3,395 mm

Overall Length: 5,985 mm

Overall Width: 1,995 mm

Overall Height: 2,265 mm

Ground Clearance: Approx. 235 mm

Turning Circle: 6,450 mm (Kerb to Kerb)

Front Suspension: Semi-Elliptic Leaf Springs

Rear Suspension: Semi-Elliptic Leaf Springs

Brakes: Drum Brakes Front & Rear with ABS

Fuel Tank Capacity: 100 Litres

Tyres: 10.00 R17.5

Why Choose the Discoverer Xtreme 4×4 – Isuzu?

The Discoverer Xtreme 4×4 – Isuzu combines proven Isuzu reliability with serious off-road capability, making it an excellent choice for travellers who venture into remote destinations. With robust engineering, selectable four-wheel drive and generous payload capacity, it’s built to support extended adventures with confidence.
